SPOCK - A spectrum analyser for electronic circuits

SPOCK is a tool for people who desire to analyse electronic circuits in frequency domain, quickly and simply. The user draw his circuit in a grid and then click a button that starts the graphic solution for a specified range. Both circuit and graphic solution may be saved in a BMP file like the example below. The user can save also the numeric response in a TXT file. The program may be run in English and in portuguese, in DOS, Windows 3.x, and 9x.

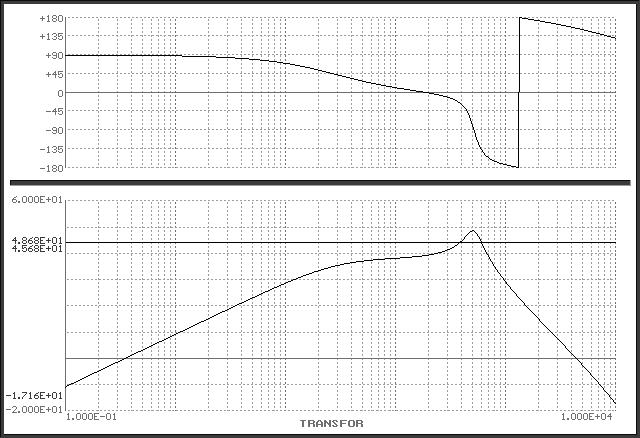

Example of frequency analysis:

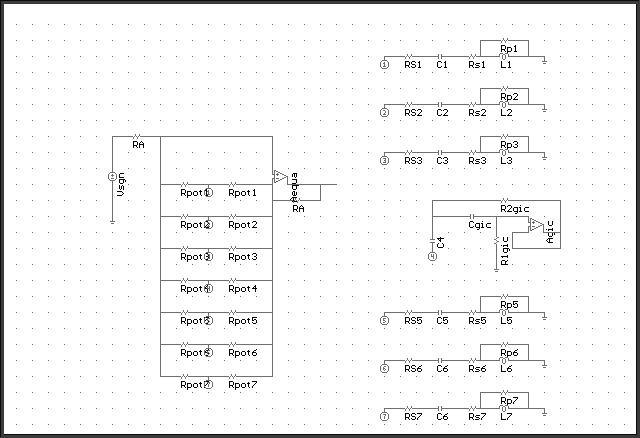

Example of circuit design:

Hardware :

• IBM-PC;
• DOS or DOS by Windows;
• 130 kb disk space;
• VGA;
• Mouse.

Installation :

• Do the SPOCK download , save the file in a directory in your computer and unzip it.
• Read the spock.txt file.

Information :

• This is a shareware full version. For more information send an email to [email protected].
• This homepage was updated in March 2000.
